3D Model Datasheet

PFL1610-102

Name: PFL1610-102MEW
Brand: Coilcraft
SKU: PFL1610-102MEW
Price: 0.35 USD
Availability: InStock

PFL1610-102MEW

For new designs, consider the PFL1609 as an alternative to this series. The PFL1609 offers much lower DCR and has the same footprint.

Für weitere Informationen und Spezifikationen zum Bauteil.

Gehe zu Baureihe

Jetzt kaufen:

Anzahl	Einzelpreis
1	$0,56
200	$0,51
500	$0,42
1000	$0,35
2000	$0,30
4000	$0,27

Für große Mengen oder nicht vorrätige Artikel bitte ein Angebot anfordern.

Tolerance

M = 20%

Termination

E = Matte tin over nickel

Packaging

W = 7" machine-ready reel

. Auf Lager, noch heute versandbereit.

Technische Daten

Electrical specifications at 25°C.

Teilenummer 1	Induktivität (µH) 2 (Toleranz: ±20%)	DCR (mΩ) 3		SRF typ (MHz) 4	Isat (mA) 5			Irms (mA) 6
Teilenummer 1	Induktivität (µH) 2 (Toleranz: ±20%)	typ	max	SRF typ (MHz) 4	10% drop	20% drop	30% drop	20°C rise	40°C rise
PFL1610-102ME_	1,0	331	365	351	650	1000	1260	570	750

Hinweise

When ordering, please specify termination and packaging codes: e.g. PFL1610-472MEW
Inductance tested at 7.9 MHz, 0.1 Vrms using a Coilcraft SMD-F test fixture with an Agilent/HP 4286A impedance analyzer and Coilcraft provided correlation pieces.
DCR measured at 25°C using a micro-ohmmeter. For other operating temperatures, use this DCR at Temperature calculator.
SRF measured using an Agilent/HP 8753D network analyzer and a Coilcraft SMD-D test fixture.
Isat: DC current at 25°C that causes the specified inductance drop from its value without current. Temperature derating curves.
Irms: Current that causes the specified temperature rise from 25°C ambient. This information is for reference only and does not represent absolute maximum ratings. Temperature derating curves.

Verpackung:

W = 7″ machine-ready reel. EIA-481 punched paper tape (2000 parts per full reel). Quantities less than full reel available: in tape (not machine ready) or with leader and trailer ($25 charge).
U = Less than full reel. In an effort to simplify our part numbering system, Coilcraft is eliminating the need for multiple packaging codes. When ordering, simply change the last letter of your part number from U to W.

Umwelt/Umgebung

Umwelt/Umgebung:

RoHS-konform , Halogenfrei

Umgebungstemperaturbereich:

−40°C to +125°C

Lagertemperaturbereich:

Component: −40°C to +125°C
Tape and reel packaging: −40°C to +80°C

Maximale Bauteiltemperatur:

+140°C (Ambient + temperature rise)

Ausfälle pro Zeiteinheit (FIT) / Mittlere Ausfallzeit (MTBF):

See FIT/MTBF Calculations

Kennlinien

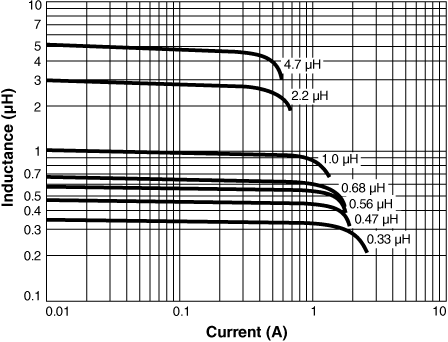

Inductance vs Current

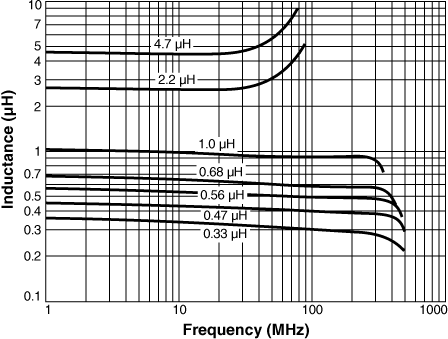

Inductance vs. Frequency

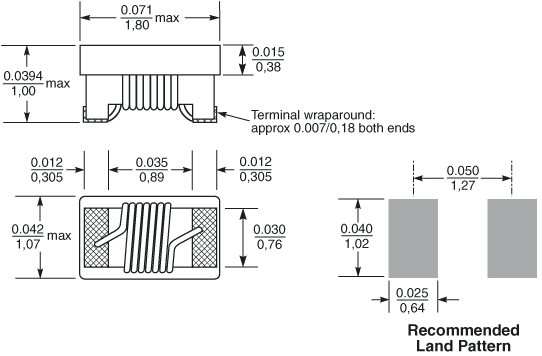

Physikalische Eigenschaften

Gurt/Rolle-Spezifikationen

Parts per reel	Reel dimensions (mm)					Tape dimensions (mm)					Orientation
7" (178 mm)	A	B	C	D	E	W	P	Po	P1	T
2000	178	100	13	14,4	8,4	8	4	4	2	1,0

Allgemeine Spezifikation

Kernmaterial:

Composite

Gewicht:

5.4 - 5.7 mg

Verpackung:

2000 per 7″ reel Paper tape: 8 mm wide, 1.0 mm thick, 4 mm pocket spacing

Löten/Reinigen

Feuchteempfindlichkeitsstufe (MSL):

1 (unlimited floor life at <30°C / 85% relative humidity)

Löttemperaturbeständigkeit:

Max three 40 second reflows at +260°C, parts cooled to room temperature between cycles

Vor dem Löten bitte den Beitrag Löten von Coilcraft-Bauelementen lesen.

Baugruppenreinigung:

Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.
