MSS5050T Series

High Temperature Power Inductors

Coilcraft MSS5050T Series shielded surface-mount power inductors feature low DC resistance and excellent current handling in a wide range of inductance values, making them a cost-effective option for a variety of general-purpose applications.

5.1 × 5.0 mm footprint
Low DCR and excellent current handling
AEC-Q200 qualified

Jetzt kaufen:

Teilenummer

Finde mein Bauteil

Muster anfordern:

Teilenummer

Finde mein Bauteil

Technische Daten

Electrical specifications at 25°C.

Teilenummer 1	Induktivität (µH) 2	Toleranz (%)	DCR (Ω) 3		Isat (A) 5			Irms (A) 6
Teilenummer 1	Induktivität (µH) 2	Toleranz (%)	typ	max	10% drop	20% drop	30% drop	20°C rise	40°C rise
MSS5050T-102ME_	1,0	20	0,016	0,019	6,1	6,4	6,6	3,0	4,2
MSS5050T-222ME_	2,2	20	0,022	0,026	3,9	4,1	4,3	2,4	3,3
MSS5050T-332ME_	3,3	20	0,029	0,035	3,3	3,4	3,5	2,1	2,8
MSS5050T-472ME_	4,7	20	0,031	0,039	2,7	2,9	3,0	2,0	2,7
MSS5050T-682ME_	6,8	20	0,047	0,058	2,2	2,4	2,5	1,6	2,2
MSS5050T-782ME_	7,8	20	0,049	0,059	2,1	2,3	2,4	1,6	2,2
MSS5050T-882ME_	8,8	20	0,051	0,061	2,0	2,1	2,2	1,5	2,1
MSS5050T-103ME_	10	20	0,061	0,075	1,9	2,0	2,1	1,4	1,9
MSS5050T-153ME_	15	20	0,074	0,090	1,5	1,6	1,7	1,3	1,7
MSS5050T-223ME_	22	20	0,11	0,14	1,2	1,3	1,4	1,0	1,4
MSS5050T-273ME_	27	20	0,13	0,15	1,1	1,2	1,3	0,95	1,3
MSS5050T-333ME_	33	20	0,14	0,17	1,0	1,1	1,2	0,90	1,2
MSS5050T-393ME_	39	20	0,18	0,22	0,95	0,98	1,0	0,78	1,1
MSS5050T-473ME_	47	20	0,20	0,24	0,88	0,92	0,95	0,74	1,0
MSS5050T-563ME_	56	20	0,23	0,27	0,80	0,84	0,87	0,70	0,96
MSS5050T-683ME_	68	20	0,34	0,41	0,73	0,78	0,80	0,56	0,78
MSS5050T-823ME_	82	20	0,38	0,45	0,65	0,70	0,72	0,53	0,74
MSS5050T-104KE_	100	10	0,40	0,48	0,59	0,64	0,66	0,52	0,71

Hinweise

When ordering, please specify termination and packaging codes: e.g. MSS5050T-104KEC
Inductance measured at 100 kHz, 0.1 Vrms using an Agilent/HP 4263B LCR meter or equivalent
DCR measured at 25°C. For other operating temperatures, use this DCR at Temperature calculator
SRF measured using Agilent/HP 4191A or equilvalent.
Isat: DC current at 25°C that causes the specified inductance drop from its value without current. Temperature derating curves.
Irms: Current that causes the specified temperature rise from 25°C ambient. This information is for reference only and does not represent absolute maximum ratings. Temperature derating curves.

Anschlüsse:

E = RoHS compliant matte tin over nickel over phos bronze.
Q = RoHS tin-silver-copper (95.5/4/0.5) over gold over nickel over phos bronze. (Special order, added cost)
P = non-RoHS tin-lead (63/37) over gold over nickel over phos bronze. (Special order, added cost)

Verpackung:

C = 7″ machine-ready reel. EIA-481 embossed plastic tape (400 per full reel). Quantities less than full reel available: in tape (not machine ready) or with leader and trailer ($25 charge).
D = 13″ machine-ready reel. EIA-481 embossed plastic tape. Factory order only, not stocked (1500 per full reel).

Umwelt/Umgebung

Umwelt/Umgebung:

RoHS-konform , Halogenfrei

Umgebungstemperaturbereich:

–40°C to +125°C with Irms (40°C) current

Lagertemperaturbereich:

Component: –40°C to +125°C.
Tape and reel packaging: –40°C to +80°C

Maximale Bauteiltemperatur:

+165°C (ambient + temp rise)

Ausfälle pro Zeiteinheit (FIT) / Mittlere Ausfallzeit (MTBF):

See FIT/MTBF Calculations

Kennlinien

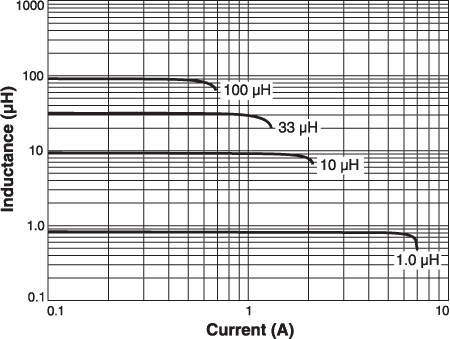

L vs Current

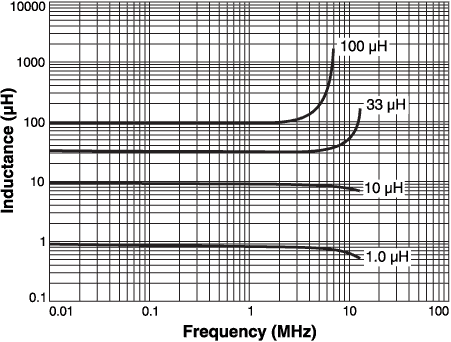

L vs Frequency

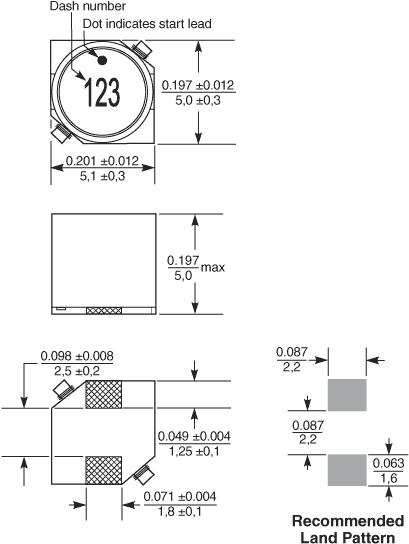

Physikalische Eigenschaften

Gurt/Rolle-Spezifikationen

Parts per reel		Reel dimensions (mm)					Tape dimensions (mm)						Orientation‡
7" (178 mm)	13" (330 mm)	A	B	C	D	E	W	P	Po	P1	H	T
400	1500*	178/330	60/100	13	22,4	16,4	16	8	4	2	5,1	0,4

* Special order
‡ Part marking does not indicate polarity.

Allgemeine Spezifikation

Kernmaterial:

Ferrite

Gewicht:

0.28 – 0.36 g

Verpackung:

400/7″ reel, 1500/13″ reel; Plastic tape: 16 mm wide, 0.40 mm thick, 8 mm pocket spacing, 5.1 mm pocket depth

Löten/Reinigen

Feuchteempfindlichkeitsstufe (MSL):

1 (unlimited floor life at <30°C / 85% relative humidity)

Löttemperaturbeständigkeit:

Max three 40 second reflows at +260°C, parts cooled to room temperature between cycles

Vor dem Löten bitte den Beitrag Löten von Coilcraft-Bauelementen lesen.

Baugruppenreinigung:

Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.
