MSS1038T Series

High Temperature Power Inductors

Coilcraft MSS1038T Series shielded surface-mount power inductors feature low DC resistance and excellent current handling in a wide range of inductance values, making them a cost-effective option for a variety of general-purpose applications.

Low-loss ferrite drum core for flat inductance vs current
Low DC resistance for greater efficiency
Excellent current handling
Magnetic shielding allows high-density mounting
AEC-Q200 Grade 1 (−40°C to +125°C)

Jetzt kaufen:

Teilenummer

Finde mein Bauteil

Anzahl	Einzelpreis
1	$2,04
250	$1,34
500	$0,80
1000	$0,63
2500	$0,55
5000	$0,50

Für große Mengen oder nicht vorrätige Artikel bitte ein Angebot anfordern.

Tolerance

N = 30%

Termination

L = Matte tin over nickel

Packaging

C = 7" machine-ready reel

. Auf Lager, noch heute versandbereit.

Muster anfordern:

Teilenummer

Finde mein Bauteil

Technische Daten

Electrical specifications at 25°C.

Teilenummer 1	Induktivität (µH) 2	Toleranz (%)	DCR max (mΩ) 3	SRF typ (MHz) 4	Isat (A) 5			Irms (A) 6
Teilenummer 1	Induktivität (µH) 2	Toleranz (%)	DCR max (mΩ) 3	SRF typ (MHz) 4	10% drop	20% drop	30% drop	20°C rise	40°C rise
MSS1038T-821NL_	0,82	30	6,0	138	9,0	11,2	12,1	7,3	10,0
MSS1038T-152NL_	1,5	30	8,1	81,0	7,4	9,5	11,1	5,6	7,9
MSS1038T-252NL_	2,5	30	10,0	61,0	5,7	7,6	9,3	4,7	6,7
MSS1038T-382NL_	3,8	30	13,0	45,0	4,9	6,5	7,6	4,3	6,1
MSS1038T-522NL_	5,2	30	22,0	37,0	4,0	5,3	6,1	3,6	5,1
MSS1038T-702NL_	7,0	30	27,0	33,0	3,6	4,7	5,6	3,1	4,4
MSS1038T-103NL_	10	30	35,0	29,0	3,0	3,9	4,5	2,9	4,1
MSS1038T-123ML_	12	20	41,0	25,0	2,7	3,5	4,0	2,9	4,0
MSS1038T-153ML_	15	20	50,0	21,0	2,8	3,4	3,9	2,7	3,8
MSS1038T-183ML_	18	20	65,0	18,0	2,4	3,1	3,5	2,3	3,4
MSS1038T-223ML_	22	20	73,0	15,0	2,3	2,9	3,3	1,9	2,9
MSS1038T-273ML_	27	20	89,0	15,0	2,0	2,5	2,8	1,7	2,4
MSS1038T-333ML_	33	20	93,0	13,0	1,8	2,3	2,6	1,6	2,3
MSS1038T-393ML_	39	20	112	12,0	1,6	2,0	2,3	1,6	2,3
MSS1038T-473ML_	47	20	128	11,0	1,6	2,0	2,2	1,5	2,2
MSS1038T-563ML_	56	20	180	11,0	1,5	1,8	2,0	1,4	1,9
MSS1038T-683ML_	68	20	213	10,0	1,3	1,6	1,8	1,2	1,8
MSS1038T-823ML_	82	20	261	8,0	1,1	1,4	1,6	1,1	1,5
MSS1038T-104ML_	100	20	304	6,0	1,0	1,3	1,5	1,1	1,5
MSS1038T-124KL_	120	10	380	6,0	0,95	1,2	1,3	0,85	1,3
MSS1038T-154KL_	150	10	506	6,0	0,89	1,1	1,2	0,80	1,2
MSS1038T-184KL_	180	10	582	5,0	0,89	1,0	1,2	0,71	0,98
MSS1038T-224KL_	220	10	756	5,0	0,72	0,88	0,99	0,70	0,97
MSS1038T-274KL_	270	10	926	4,0	0,66	0,81	0,91	0,65	0,86
MSS1038T-334KL_	330	10	1090	4,0	0,59	0,73	0,82	0,50	0,69
MSS1038T-394KL_	390	10	1141	4,0	0,51	0,65	0,74	0,49	0,65
MSS1038T-474KL_	470	10	1243	3,0	0,50	0,62	0,70	0,45	0,63
MSS1038T-564KL_	560	10	1696	3,0	0,43	0,53	0,56	0,43	0,59
MSS1038T-684KL_	680	10	1926	3,0	0,38	0,48	0,52	0,36	0,50
MSS1038T-824KL_	820	10	2596	3,0	0,37	0,46	0,49	0,34	0,47
MSS1038T-105KL_	1000	10	2853	3,0	0,35	0,43	0,46	0,33	0,45

Hinweise

When ordering, please specify termination and packaging codes: e.g. MSS1038T-105KLC
Inductance measured at 100 kHz, 0.1 Vrms using an Agilent/HP 4263B LCR meter or equivalent.
DCR measured at 25°C on a micro-ohmmeter. For other operating temperatures, use this DCR at Temperature calculator.
SRF measured using an Agilent/HP 8753D network analyzer or equivalent. Details
Isat: DC current at 25°C that causes the specified inductance drop from its value without current. Temperature derating curves.
Irms: Current that causes the specified temperature rise from 25°C ambient. This information is for reference only and does not represent absolute maximum ratings. Temperature derating curves.

Anschlüsse:

L = RoHS compliant matte tin over nickel over copper.
T = RoHS tin-silver-copper (95.5/4/0.5). (Special order, added cost)
S = non-RoHS tin-lead (63/37). (Special order, added cost)

Verpackung:

C = 7″ machine-ready reel. EIA-481 embossed plastic tape (250 parts per full reel).
B = Less than full reel. In tape, but not machine ready. To have a leader and trailer added ($25 charge), use code letter C instead.
D = 13″ machine-ready reel. EIA-481 embossed plastic tape. Factory order only, not stocked (1000 parts per full reel).

Umwelt/Umgebung

Umwelt/Umgebung:

RoHS-konform

Umgebungstemperaturbereich:

–40°C to +125°C with (40°C rise) Irms current

Lagertemperaturbereich:

Component: –40°C to +165°C.
Tape and reel packaging: –40°C to +80°C

Maximale Bauteiltemperatur:

+165°C (Ambient + temperature rise)

Ausfälle pro Zeiteinheit (FIT) / Mittlere Ausfallzeit (MTBF):

See FIT/MTBF Calculations

Kennlinien

Inductance vs. Current

Inductance vs. Frequency

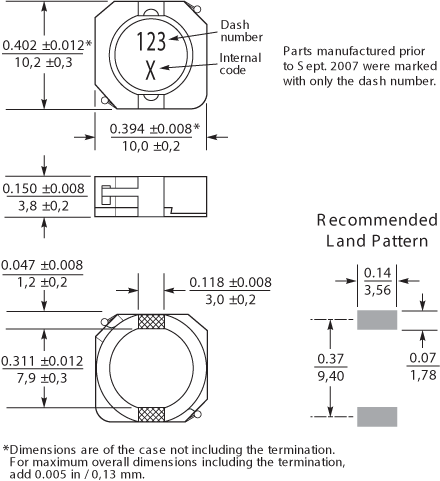

Physikalische Eigenschaften

Gurt/Rolle-Spezifikationen

Parts per reel		Reel dimensions (mm)					Tape dimensions (mm)						Orientation ‡
7" (178 mm)	13" (330 mm)	A	B	C	D	E	W	P	Po	P1	H	T
250	1000*	178/330	60/100	13	30,4	24,4	24	16	4	2	4,3	0,35

* Special order
‡ Part marking does not indicate polarity

Allgemeine Spezifikation

Kernmaterial:

Ferrite

Gewicht:

1.5 g

Verpackung:

250/7″ reel; 1000/13″ reel; Plastic tape: 24 mm wide, 0.35 mm thick, 16 mm pocket spacing, 4.3 mm pocket depth

Löten/Reinigen

Feuchteempfindlichkeitsstufe (MSL):

1 (unlimited floor life at <30°C / 85% relative humidity)

Löttemperaturbeständigkeit:

Max three 40 second reflows at +260°C, parts cooled to room temperature between cycles

Vor dem Löten bitte den Beitrag Löten von Coilcraft-Bauelementen lesen.

Baugruppenreinigung:

Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.
