MSD1260H Series

Shielded Coupled Power Inductors

Coilcraft's MSD1260H Series of 1:1 coupled power inductors feature magnetic shielding for compact packaging and tight winding-to-winding coupling. They are ideal for Flyback, SEPIC, Ćuk, Zeta and other applications.

Ideal for Flyback, SEPIC, Ćuk, Zeta and other applications
Magnetic shielding allows high-density mounting
Tight winding coupling
Industry standard footprint
AEC-Q200 Grade 1 (−40°C to +125°C)

Jetzt kaufen:

Teilenummer

Finde mein Bauteil

Anzahl	Einzelpreis
1	$2,93
250	$1,91
500	$1,16
1000	$0,90
2500	$0,77
5000	$0,72

Für große Mengen oder nicht vorrätige Artikel bitte ein Angebot anfordern.

Tolerance

M = 20%

Termination

E = Matte tin over nickel over phos bronze

Packaging

D = 13" machine-ready reel

. Auf Lager, noch heute versandbereit.

Muster anfordern:

Teilenummer

Finde mein Bauteil

Technische Daten

Electrical specifications at 25°C.

Für Flyback-Anwendungen

Teilenummer 1	Induktivität (µH) 2	Toleranz (%)	DCR max (Ω) 3	Isolations- spannung (V)	Streu- induktivität (µH) 5	Windungsverhältnis
Teilenummer 1	Induktivität (µH) 2	Toleranz (%)	DCR max (Ω) 3	Isolations- spannung (V)	Streu- induktivität (µH) 5	Windungsverhältnis
MSD1260H-222MED	2,2	20	0,017	500	0,14	1 : 1
MSD1260H-332MED	3,3	20	0,020	500	0,17	1 : 1
MSD1260H-472MED	4,7	20	0,023	500	0,18	1 : 1
MSD1260H-562MED	5,6	20	0,030	500	0,18	1 : 1
MSD1260H-682MED	6,8	20	0,033	500	0,19	1 : 1
MSD1260H-822MED	8,2	20	0,036	500	0,20	1 : 1
MSD1260H-103MED	10	20	0,045	500	0,22	1 : 1
MSD1260H-123MED	12	20	0,050	500	0,23	1 : 1
MSD1260H-153MED	15	20	0,059	500	0,25	1 : 1
MSD1260H-183MED	18	20	0,071	500	0,27	1 : 1
MSD1260H-223MED	22	20	0,083	500	0,29	1 : 1
MSD1260H-273MED	27	20	0,093	500	0,29	1 : 1
MSD1260H-333MED	33	20	0,118	500	0,32	1 : 1
MSD1260H-393MED	39	20	0,132	500	0,34	1 : 1
MSD1260H-473MED	47	20	0,143	500	0,38	1 : 1
MSD1260H-563MED	56	20	0,186	500	0,38	1 : 1
MSD1260H-683MED	68	20	0,209	500	0,45	1 : 1
MSD1260H-823MED	82	20	0,270	500	0,45	1 : 1
MSD1260H-104MED	100	20	0,310	500	0,48	1 : 1
MSD1260H-124KED	120	10	0,345	500	0,50	1 : 1
MSD1260H-154KED	150	10	0,465	500	0,56	1 : 1
MSD1260H-184KED	180	10	0,525	500	0,66	1 : 1
MSD1260H-224KED	220	10	0,680	500	0,88	1 : 1
MSD1260H-274KED	270	10	0,783	500	1,1	1 : 1
MSD1260H-334KED	330	10	0,916	500	1,1	1 : 1
MSD1260H-394KED	390	10	1,155	500	1,1	1 : 1
MSD1260H-474KED	470	10	1,330	500	1,2	1 : 1
MSD1260H-564KED	560	10	1,738	500	1,6	1 : 1
MSD1260H-684KED	680	10	2,013	500	1,9	1 : 1
MSD1260H-824KED	820	10	2,280	500	2,6	1 : 1
MSD1260H-105KED	1000	10	2,950	500	3,8	1 : 1

Für SEPIC-Anwendungen

Teilenummer 1	Induktivität (µH) 2	Toleranz (%)	DCR max (Ω) 3	SRF typ (MHz) 4	Kopplungskoeffizient	Streu- induktivität (µH) 5	Isat (A) 6			Irms (A)
Teilenummer 1	Induktivität (µH) 2	Toleranz (%)	DCR max (Ω) 3	SRF typ (MHz) 4	Kopplungskoeffizient	Streu- induktivität (µH) 5	10% drop	20% drop	30% drop	beide Wicklungen 7	eine Wicklung 8
MSD1260H-222MED	2,2	20	0,017	57,0	0.97	0,14	10,1	11,8	13,0	4,5	6,3
MSD1260H-332MED	3,3	20	0,020	48,0	0.97	0,17	8,3	9,6	10,7	4,1	5,7
MSD1260H-472MED	4,7	20	0,023	40,0	0.98	0,18	6,9	8,1	8,9	3,8	5,3
MSD1260H-562MED	5,6	20	0,030	36,0	0.98	0,18	6,3	7,4	8,2	3,5	4,8
MSD1260H-682MED	6,8	20	0,033	31,0	0.98	0,19	5,7	6,7	7,4	3,1	4,3
MSD1260H-822MED	8,2	20	0,036	28,0	0.98	0,20	5,2	6,1	6,8	2,9	4,0
MSD1260H-103MED	10	20	0,045	24,0	0.98	0,22	4,7	5,5	6,1	2,6	3,6
MSD1260H-123MED	12	20	0,050	22,0	0.98	0,23	4,3	5,0	5,6	2,5	3,4
MSD1260H-153MED	15	20	0,059	19,0	0.98	0,25	3,9	4,5	5,0	2,3	3,2
MSD1260H-183MED	18	20	0,071	17,0	0.98	0,27	3,5	4,1	4,6	2,1	2,9
MSD1260H-223MED	22	20	0,083	15,0	0.98	0,29	3,2	3,7	4,1	1,9	2,6
MSD1260H-273MED	27	20	0,093	13,0	0.98	0,29	2,9	3,4	3,7	1,8	2,5
MSD1260H-333MED	33	20	0,118	12,0	0.98	0,32	2,6	3,0	3,4	1,6	2,2
MSD1260H-393MED	39	20	0,132	11,0	0.98	0,34	2,4	2,8	3,1	1,5	2,1
MSD1260H-473MED	47	20	0,143	10,5	0.98	0,38	2,2	2,5	2,8	1,4	1,9
MSD1260H-563MED	56	20	0,186	9,5	0.98	0,38	2,0	2,3	2,6	1,3	1,8
MSD1260H-683MED	68	20	0,209	8,5	0.98	0,45	1,8	2,1	2,3	1,2	1,7
MSD1260H-823MED	82	20	0,270	7,5	0.98	0,45	1,7	1,9	2,1	1,1	1,5
MSD1260H-104MED	100	20	0,310	7,0	0.98	0,48	1,5	1,7	1,9	0,95	1,3
MSD1260H-124KED	120	10	0,345	6,4	0.98	0,50	1,4	1,6	1,8	0,85	1,2
MSD1260H-154KED	150	10	0,465	5,4	0.98	0,56	1,2	1,5	1,6	0,75	1,1
MSD1260H-184KED	180	10	0,525	5,0	0.98	0,66	1,1	1,3	1,4	0,65	0,91
MSD1260H-224KED	220	10	0,680	4,4	0.98	0,88	1,0	1,2	1,3	0,60	0,84
MSD1260H-274KED	270	10	0,783	4,0	0.98	1,1	0,91	1,1	1,2	0,55	0,77
MSD1260H-334KED	330	10	0,916	3,6	0.98	1,1	0,83	0,96	1,1	0,52	0,73
MSD1260H-394KED	390	10	1,155	3,3	0.98	1,1	0,76	0,89	0,98	0,50	0,70
MSD1260H-474KED	470	10	1,330	3,0	0.98	1,2	0,69	0,81	0,89	0,45	0,63
MSD1260H-564KED	560	10	1,738	2,8	0.98	1,6	0,63	0,74	0,82	0,40	0,56
MSD1260H-684KED	680	10	2,013	2,4	0.98	1,9	0,57	0,67	0,74	0,36	0,50
MSD1260H-824KED	820	10	2,280	2,3	0.98	2,6	0,52	0,61	0,68	0,32	0,45
MSD1260H-105KED	1000	10	2,950	2,1	0.98	3,8	0,47	0,55	0,61	0,28	0,39

Hinweise

When ordering, please specify termination and packaging codes: e.g. MSD1260H-105KED
Inductance shown for each winding, measured at 100 kHz, 0.1 Vrms, 0 Adc on an Agilent/HP 4284A LCR meter or equivalent. When leads are connected in parallel, inductance is the same value. When leads are connected in series, inductance is four times the value.
DCR is for each winding. When leads are connected in parallel, DCR is half the value. When leads are connected in series, DCR is twice the value.
SRF measured using an Agilent/HP 4191A or equivalent. When leads are connected in parallel, SRF is the same value.
Leakage Inductance is for L1 and is measured with L2 shorted.
Isat: DC current, at which the inductance drops the specified amount from its value without current. It is the sum of the current flowing in both windings.
Irms, both windings: Maximum current when applied to one winding that causes a 40°C temperature rise from 25°C ambient. This information is for reference only and does not represent absolute maximum ratings. Determine temperature rise.
Irms, one winding: Equal current when applied to each winding simultaneously that causes a 40°C temperature rise from 25°C ambient. This information is for reference only and does not represent absolute maximum ratings. Determine temperature rise.

Anschlüsse:

E = RoHS compliant matte tin over nickel over phos bronze.
T = RoHS tin-silver-copper (95.5/4/0.5). (Special order, added cost)
S = non-RoHS tin-lead (63/37). (Special order, added cost)

Verpackung:

D = 13" reel, machine-ready
EIA-481 embossed plastic tape (500 parts per full reel). Quantities less than full reel available: in tape (not machine ready) or with leader and trailer ($25 charge).

Umwelt/Umgebung

Umwelt/Umgebung:

RoHS-konform , Halogenfrei

Umgebungstemperaturbereich:

–40°C to +125°C with (40°C rise) Irms current.

Lagertemperaturbereich:

Component: –40°C to +165°C.
Tape and reel packaging: –40°C to +80°C

Maximale Bauteiltemperatur:

+165°C (ambient + temp rise).

Ausfälle pro Zeiteinheit (FIT) / Mittlere Ausfallzeit (MTBF):

See FIT/MTBF Calculations

Kennlinien

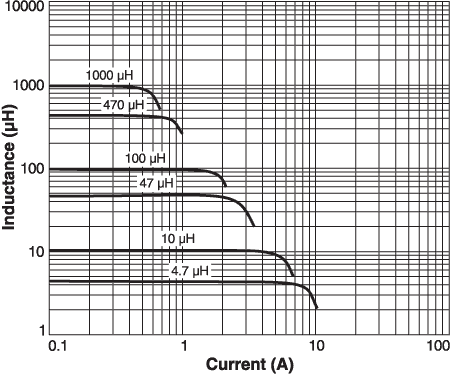

L vs Current

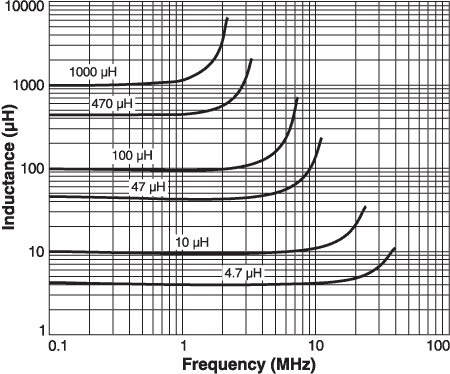

L vs Frequency

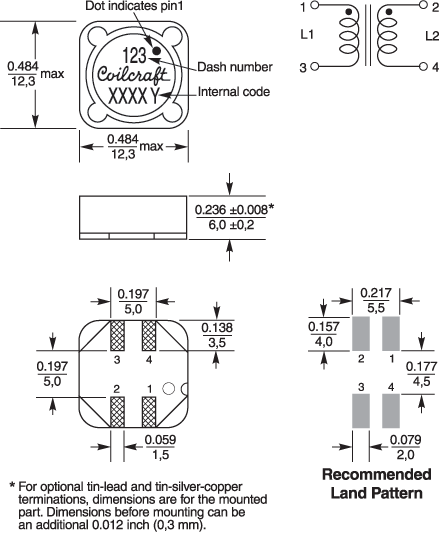

Pläne/Diagramme

Physikalische Eigenschaften

Gurt/Rolle-Spezifikationen

Parts per reel	Reel dimensions (mm)					Tape dimensions (mm)						Orientation
13" (330 mm)	A	B	C	D	E	W	P	Po	P1	H	T
500	330	100	13	30,4	24,4	24	16	4	2	6,9	0,5

Allgemeine Spezifikation

Kernmaterial:

Ferrite

Gewicht:

2.8 – 3.2 g

Verpackung:

500/13″ reel; Plastic tape: 24 mm wide, 0.5 mm thick, 16 mm pocket spacing, 6.9 mm pocket depth

Winding to Winding Isolation:

500 Vrms, one minute

Löten/Reinigen

Feuchteempfindlichkeitsstufe (MSL):

1 (unlimited floor life at <30°C / 85% relative humidity)

Löttemperaturbeständigkeit:

Max three 40 second reflows at +260°C, parts cooled to room temperature between cycles

Vor dem Löten bitte den Beitrag Löten von Coilcraft-Bauelementen lesen.

Baugruppenreinigung:

Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info
