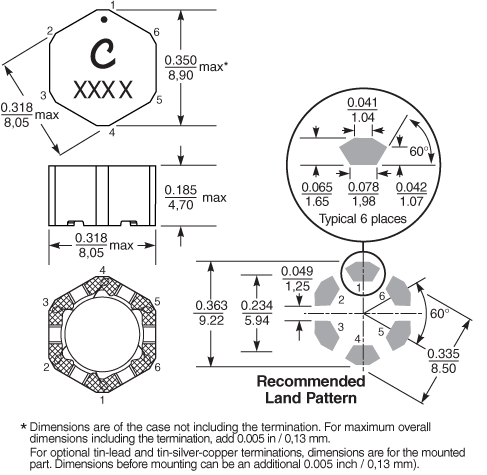

3D Model Datasheet

LPH8045 Series

3-Winding Coupled Inductors/Transformers

Our versatile LPH8045 Series shielded coupled inductors include three 1:1 windings for a variety of configurations as transformers, or as a SEPIC inductor. Magnetic shielding allows high density mounting.

Three 1 : 1 windings can be wired in a variety of ways:
As a 1 : 1, 2 : 1 or 1 : 2 transformer;
as a 1 : 1 transformer with an aux winding;
as a gate drive transformer;
as a SEPIC inductor; etc.
Low DCR
Excellent current handling
Magnetically shielded

Jetzt kaufen:

Teilenummer

Finde mein Bauteil

Muster anfordern:

Teilenummer

Finde mein Bauteil

Technische Daten

Electrical specifications at 25°C.

Für Flyback-Anwendungen

Teilenummer 1 (Hover for schematics)	Induktivität (µH) 2 (Toleranz: ±20%)	DCR (mΩ) 3		Isolations- spannung (V)	Windungsverhältnis
Teilenummer 1 (Hover for schematics)	Induktivität (µH) 2 (Toleranz: ±20%)	typ	max	Isolations- spannung (V)	Windungsverhältnis
LPH8045-682MR_	6,8	208	223	200	1 : 1
LPH8045-822MR_	8,2	228	250	200	1 : 1
LPH8045-103MR_	10	241	261	200	1 : 1
LPH8045-153MR_	15	306	331	200	1 : 1
LPH8045-223MR_	22	390	395	200	1 : 1

Für SEPIC-Anwendungen

Teilenummer 1 (Hover for schematics)	Induktivität (µH) 2 (Toleranz: ±20%)	DCR (mΩ) 3		SRF typ (MHz) 4	Isat (A) 5			Irms (mA) 6
Teilenummer 1 (Hover for schematics)	Induktivität (µH) 2 (Toleranz: ±20%)	typ	max	SRF typ (MHz) 4	10% drop	20% drop	30% drop	Irms (mA) 6
LPH8045-682MR_	6,8	208	223	31,0	3,3	3,7	3,9	1300
LPH8045-822MR_	8,2	228	250	27,4	3,0	3,4	3,7	1260
LPH8045-103MR_	10	241	261	25,0	2,7	3,1	3,4	1210
LPH8045-153MR_	15	306	331	18,9	2,3	2,7	2,9	1090
LPH8045-223MR_	22	390	395	15,0	1,7	1,9	2,1	890

Hinweise

When ordering, please specify packaging code: e.g. LPH8045-223MRC
Inductance is for each winding, measured at 100 kHz, 0.1 Vrms, 0 Adc
DCR is for each winding, measured at 25°C on a micro-ohmmeter. For other operating temperatures, use this DCR at Temperature calculator.

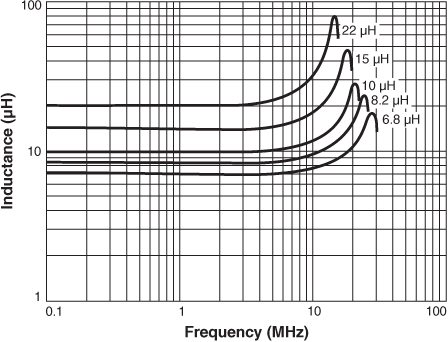

SRF measured using an Agilent/HP 8753ES or equivalent.

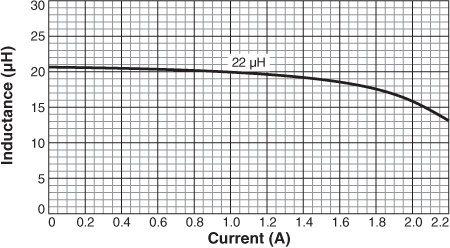

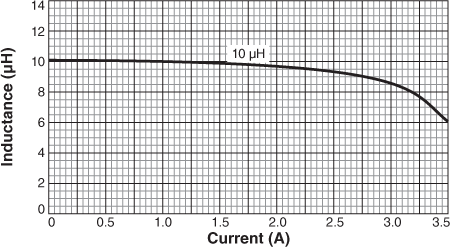

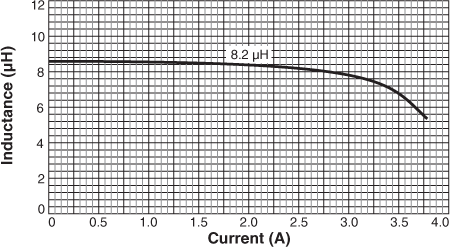

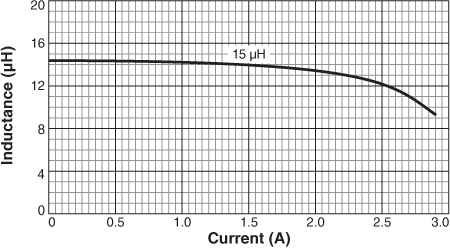

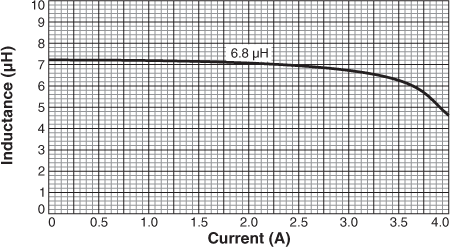

Isat: DC current at which the inductance drops the specified amount from its value without current. Details
Irms: Current through one winding that causes the specified temperature rise from 25°C ambient. This information is for reference only and does not represent absolute maximum ratings.

Anschlüsse:

RoHS compliant matte tin over nickel over silver. Other terminations available at additional cost.

Verpackung:

C = 7″ machine-ready reel. EIA-481 embossed plastic tape (250 parts per full reel). Quantities less than full reel available: in tape (not machine ready) or with leader and trailer ($25 charge).
D = 13″ machine-ready reel. EIA-481 embossed plastic tape. Factory order only, not stocked (1000 parts per full reel).
B = Less than full reel. In an effort to simplify our part numbering system, Coilcraft is eliminating the need for multiple packaging codes. When ordering, simply change the last letter of your part number from B to C.

Umwelt/Umgebung

Umwelt/Umgebung:

RoHS-konform , Halogenfrei

Umgebungstemperaturbereich:

–40°C to +85°C with (40°C rise) Irms current

Lagertemperaturbereich:

Component: −40°C to +125°C
Tape and reel packaging: −40°C to +80°C

Maximale Bauteiltemperatur:

+125°C (Ambient + temperature rise)

Ausfälle pro Zeiteinheit (FIT) / Mittlere Ausfallzeit (MTBF):

See FIT/MTBF Calculations
