1008AF (2520) Series

Wirewound Ferrite Beads

Our 1008AF Series wirewound ferrite beads feature heavy guage wire for high current handling. These are great for RF signal isolation and power supply filtering applications. This high-impedance series covers a wide range of values from 59 Ohms to 720 Ohms at 10 MHz and comes with a tight ±5% standard tolerance on all values.

Higher performance than other surface mount ferrite beads in the market
High impedance across a wide bandwidth
Ferrite construction and heavy gauge wire for high current handling
Extremely low DCR for high current applications
Eliminates high frequency noise in power supplies or RF signal isolation applications

Need parts for space, military or other critical applications?
See Coilcraft AR413RAM Series | See Coilcraft ML413RAM Series | See Coilcraft MS413RAM Series | See Coilcraft ST413RAM Series

Jetzt kaufen:

Teilenummer

Finde mein Bauteil

Anzahl	Einzelpreis
1	$1,29
200	$1,01
500	$0,76
1000	$0,53
2000	$0,41
4000	$0,31
10000	$0,27

Für große Mengen oder nicht vorrätige Artikel bitte ein Angebot anfordern.

Tolerance

K = 10%

J = 5%

Termination

R = Matte Sn over Ni over Ag-Pt-glass frit

Packaging

C = 7" machine-ready reel

. Auf Lager, noch heute versandbereit.

Muster anfordern:

Teilenummer

Finde mein Bauteil

Designer-Kits:

Kit	Werte	Preis
C414	14 (10 of each)	$45,00

Technische Daten

Electrical specifications at 25°C.

Teilenummer 1	Induktivität (µH) 2 (Toleranz: ±5%)	Impedanz typ (Ω)		SRF typ (MHz) 3	DCR max (Ω) 4	Isat (A) 5	Irms (A) 6
Teilenummer 1	Induktivität (µH) 2 (Toleranz: ±5%)	1 MHz	10 MHz	SRF typ (MHz) 3	DCR max (Ω) 4	Isat (A) 5	Irms (A) 6
1008AF-901XJR_	0,9	6,09	59,29	415	0,100	1,40	1,30
1008AF-112XJR_	1,1	7,24	70,42	376	0,105	1,30	1,20
1008AF-132XJR_	1,3	8,00	76,46	198	0,110	1,20	1,10
1008AF-152XJR_	1,5	9,83	95,22	135	0,125	1,10	1,00
1008AF-192XJR_	1,9	12,72	124,10	126	0,140	1,00	1,00
1008AF-222XJR_	2,2	14,48	140,90	106	0,155	0,95	0,95
1008AF-272XJR_	2,7	17,99	174,80	70,0	0,190	0,80	0,90
1008AF-332XJR_	3,3	21,96	215,20	59,0	0,210	0,75	0,80
1008AF-392XJR_	3,9	26,13	258,10	55,0	0,220	0,70	0,80
1008AF-472XJR_	4,7	31,18	312,90	48,0	0,435	0,70	0,65
1008AF-582XJR_	5,8	37,68	378,70	37,0	0,280	0,55	0,75
1008AF-682XJR_	6,8	46,32	471,80	33,0	0,315	0,50	0,70
1008AF-822XJR_	8,2	55,91	581,90	33,8	0,340	0,50	0,65
1008AF-103XJR_	10,0	66,54	721,80	22,0	0,460	0,45	0,55

Hinweise

When ordering, please specify termination and packaging codes: e.g. 1008AF-103XJRC
Inductance measured at 2.5 MHz using a Coilcraft SMD-A fixture in an Agilent/HP 4286A impedance analyzer with Coilcraft-provided correlation pieces.
SRF measured using an Agilent/HP 8753D network analyzer and a Coilcraft SMD-D test fixture.
DCR measured at 25°C on a Cambridge Technology Micro-ohmmeter. For other operating temperatures, use this DCR at Temperature calculator.
Isat: DC current at 25°C that causes a 10% (typ) inductance drop from its value without current.
Irms: Current that causes a 40°C temperature rise from 25°C ambient. This information is for reference only and does not represent absolute maximum ratings.

Anschlüsse:

R = RoHS compliant. Matte Sn over Ni over Ag-Pt-glass frit terminations.

T = RoHS Sn/Ag/Cu (95.5/4.0/0.5) (Special order, added cost)
S = Not RoHS Sn/Pb (63/37) (Special order, added cost)

Verpackung:

C = 7″ machine-ready reel. EIA-481 embossed plastic tape (2000 parts per full reel). Quantities less than full reel available: in tape (not machine ready) or with leader and trailer ($25 charge).
D = 13″ machine-ready reel. EIA-481 embossed plastic tape. Factory order only, not stocked (7500 parts per full reel).
B = Less than full reel. In an effort to simplify our part numbering system, Coilcraft is eliminating the need for multiple packaging codes. When ordering, simply change the last letter of your part number from B to C.

Umwelt/Umgebung

Umwelt/Umgebung:

RoHS-konform , Halogenfrei

Umgebungstemperaturbereich:

–40°C to +85°C with Irms current

Lagertemperaturbereich:

Component: –40°C to +125°C.
Tape and reel packaging: –40°C to +80°C

Maximale Bauteiltemperatur:

+125°C (ambient + temp rise)

Ausfälle pro Zeiteinheit (FIT) / Mittlere Ausfallzeit (MTBF):

See FIT/MTBF Calculations

Kennlinien

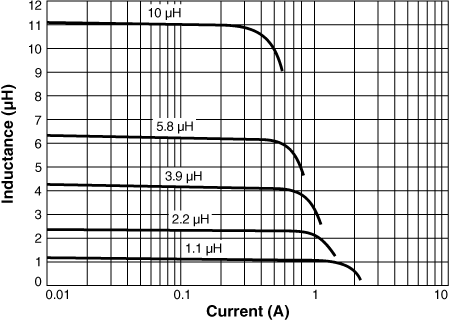

Inductance vs Current

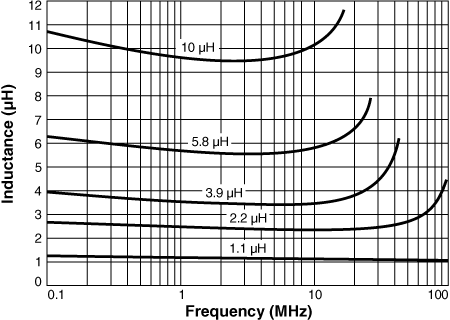

Inductance vs Frequency

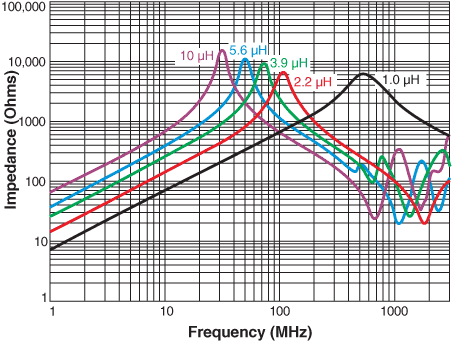

Impedance versus Frequency

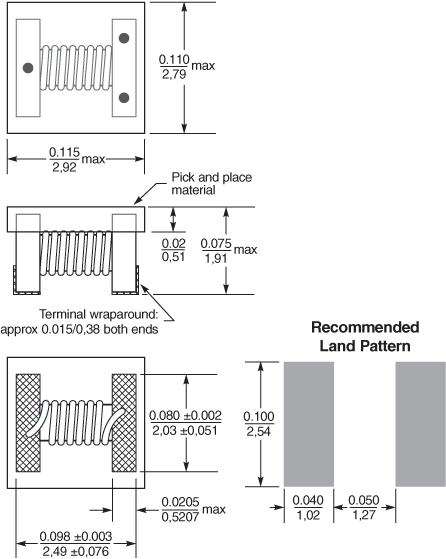

Physikalische Eigenschaften

Note: Height dimension is before optional solder application. For maximum height dimension including solder, add 0.006 in / 0,152 mm

Gurt/Rolle-Spezifikationen

Parts per reel		Reel dimensions (mm)					Tape dimensions (mm)						Orientation
7" (178 mm)	13" (330 mm)	A	B	C	D	E	W	P	Po	P1	H	T
2000	7500*	178/330	60/100	13	14,4	8,4	8	4	4	2	2,0	0,3

*Special order

Allgemeine Spezifikation

Kernmaterial:

Ferrite

Gewicht:

28 – 33 mg

Löten/Reinigen

Feuchteempfindlichkeitsstufe (MSL):

1 (unlimited floor life at <30°C / 85% relative humidity)

Löttemperaturbeständigkeit:

Max three 40 second reflows at +260°C, parts cooled to room temperature between cycles

Vor dem Löten bitte den Beitrag Löten von Coilcraft-Bauelementen lesen.

Baugruppenreinigung:

Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.
