0603AF (1608) Series

Wirewound Ferrite Beads

Our 0603AF Series of wirewound ferrite beads feature heavy guage wire for high current handling and are great for RF signal isolation and power supply filtering applications. This series covers a wide range of impdedance values from 9 Ohms to 3800 Ohms at 100 MHz and comes with a tight ±5% standard tolerance on all values.

Higher performance than other surface mount ferrite beads in the market
High impedance across a wide bandwidth; up to GHz band
Ferrite construction and heavy gauge wire for high current handling
Extremely low DCR for high current applications
Eliminates high-frequency noise in power supplies or RF signal isolation applications

Need parts for space, military or other critical applications?
- See Coilcraft CPS 312RAM series.

Need parts for space, military or other critical applications?
See Coilcraft AR312RAM Series | See Coilcraft ST312RAM Series

Jetzt kaufen:

Teilenummer

Finde mein Bauteil

Anzahl	Einzelpreis
1	$1,27
200	$0,96
500	$0,73
1000	$0,50
2000	$0,38
4000	$0,28

Für große Mengen oder nicht vorrätige Artikel bitte ein Angebot anfordern.

Tolerance

J = 5%

Termination

R = Matte Sn over Ni over Ag-Pt-glass frit

Packaging

W = 7" machine-ready reel

. Auf Lager, noch heute versandbereit.

Muster anfordern:

Teilenummer

Finde mein Bauteil

Designer-Kits:

Kit	Werte	Preis
C439	27 (10 of each)	$70,00

Technische Daten

Electrical specifications at 25°C.

Teilenummer 1	Induktivität (nH) 2 (Toleranz: ±5%)	Impedanz typ (Ω)		SRF typ (MHz) 3	DCR max (Ω) 4	Irms (A) 5	Farbkodierung 6
Teilenummer 1	Induktivität (nH) 2 (Toleranz: ±5%)	100 MHz	900 MHz	SRF typ (MHz) 3	DCR max (Ω) 4	Irms (A) 5	Farbkodierung 6
0603AF-15NXJRW	15 @ 7,9 MHz	8,8	74,8	3500	0,023	2,10	Yellow
0603AF-33NXJRW	33 @ 7,9 MHz	18,7	165	2300	0,028	1,90	Red
0603AF-39NXJRW	39 @ 7,9 MHz	22,3	199	2200	0,115	1,00	Green
0603AF-47NXJRW	47 @ 7,9 MHz	28,4	243	2250	0,052	1,70	White
0603AF-50NXJRW	50 @ 7,9 MHz	30,2	268	1830	0,052	1,70	Violet
0603AF-68NXJRW	68 @ 7,9 MHz	38,3	374	1500	0,150	0,88	Gray
0603AF-72NXJRW	72 @ 7,9 MHz	45,6	418	1800	0,065	1,50	Blue
0603AF-85NXJRW	85 @ 7,9 MHz	50,8	504	1600	0,065	1,50	Brown
0603AF-111XJRW	110 @ 7,9 MHz	68,3	754	1230	0,060	1,60	Red
0603AF-121XJRW	120 @ 7,9 MHz	70,5	861	1150	0,089	1,40	Black
0603AF-151XJRW	151 @ 7,9 MHz	87,6	960	1050	0,093	1,50	Yellow
0603AF-201XJRW	201 @ 7,9 MHz	117	1733	880	0,115	1,40	Green
0603AF-241XJRW	240 @ 7,9 MHz	143	2226	900	0,120	0,85	Violet
0603AF-271XJRW	270 @ 7,9 MHz	172	3102	750	0,220	0,68	Brown
0603AF-361XJRW	360 @ 7,9 MHz	214	3696	700	0,210	0,65	Blue
0603AF-391XJRW	391 @ 7,9 MHz	232	5033	700	0,300	0,64	Black
0603AF-421XJRW	420 @ 7,9 MHz	259	5199	685	0,330	0,61	Red
0603AF-471XJRW	470 @ 7,9 MHz	299	6332	575	0,370	0,61	Orange
0603AF-561XJRW	560 @ 7,9 MHz	364	5135	515	0,490	0,53	Blue
0603AF-601XJRW	601 @ 7,9 MHz	355	7687	540	0,552	0,51	Blue
0603AF-681XJRW	680 @ 7,9 MHz	435	6312	530	0,460	0,49	Orange
0603AF-821XJRW	820 @ 7,9 MHz	527	211	325	0,580	0,42	Green
0603AF-102XJRW	1000 @ 7,9 MHz	666	3993	400	0,840	0,40	Black
0603AF-152XJRW	1500 @ 7,9 MHz	940	3116	330	1,300	0,28	Orange
0603AF-222XJRW	2200 @ 7,9 MHz	3808	64,3	85,0	1,100	0,32	Red
0603AF-472XJRW	4700 @ 7,9 MHz	746	48,1	60,0	1,500	0,26	Yellow
0603AF-103XJRW	10000 @ 2,5 MHz	1271	125	40,0	4,500	0,18	Gray

Hinweise

When ordering, please specify termination and packaging codes: e.g. 0603AF-103XJRW
Inductance measured at 0.1 Vrms, using a Coilcraft SMD-A fixture in an Agilent/HP 4286A impedance analyzer with Coilcraft-provided correlation pieces.
SRF measured using an Agilent/HP 8753D network analyzer and a Coilcraft SMD-D test fixture.
DCR measured at 25°C using a Cambridge Technology Micro-ohmmeter. For other operating temperatures, use this DCR at Temperature calculator.
Irms: Current that causes a 15°C temperature rise from 25°C ambient. This information is for reference only and does not represent absolute maximum ratings. Because of their open construction, these parts will not saturate.
Each part is marked with a single dot. The color dots are not unique identifiers and correspond to multiple inductance values.

Anschlüsse:

R = RoHS compliant. Matte Sn over Ni over Ag-Pt-glass frit terminations.

Q = RoHS Sn/Ag/Cu (95.5/4.0/0.5) (Special order, added cost)
P = Not RoHS Sn/Pb (63/37) (Special order, added cost)

Verpackung:

W = 7” machine-ready reel. EIA-481 punched paper tape (2000 parts per full reel). Quantities less than full reel available: in tape (not machine ready) or with leader and trailer ($25 charge).
Y = 13″ machine-ready reel. EIA-481 punched paper tape. Factory order only, not stocked (10000 parts per full reel).
U = Less than full reel. In an effort to simplify our part numbering system, Coilcraft is eliminating the need for multiple packaging codes. When ordering, simply change the last letter of your part number from U to W.

Umwelt/Umgebung

Umwelt/Umgebung:

RoHS-konform , Halogenfrei

Umgebungstemperaturbereich:

–40°C to +85°C with Irms current

Lagertemperaturbereich:

Component: –40°C to +100°C.
Tape and reel packaging: –40°C to +80°C

Maximale Bauteiltemperatur:

+100°C (ambient + temp rise)

Ausfälle pro Zeiteinheit (FIT) / Mittlere Ausfallzeit (MTBF):

See FIT/MTBF Calculations

Kennlinien

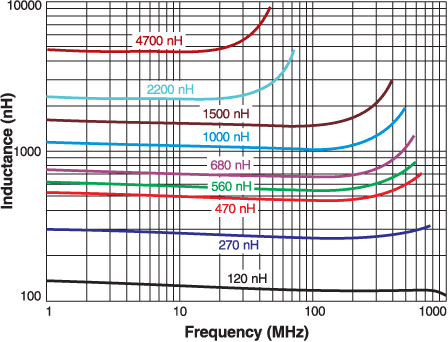

Inductance vs. Frequency

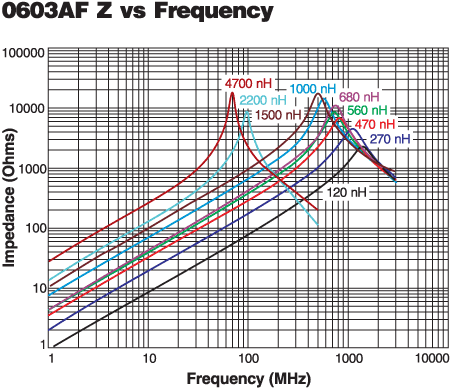

Impedance vs. Frequency

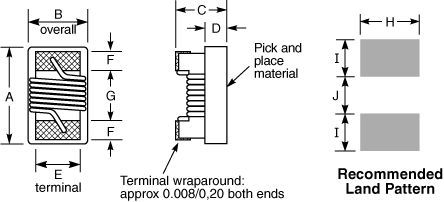

Physikalische Eigenschaften

A max	B max	C max	D	E	F	G	H	I	J
0.071	0.044	0.036	0.015	0.030	0.013	0.034	0.040	0.025	0.025	inches
1,80	1,12	0,91	0,38	0,76	0,33	0,86	1,02	0,64	0,64	mm

Height dimension (C) is before optional solder application.
For maximum height dimension including solder, add 0.006 in / 0,152 mm.

Gurt/Rolle-Spezifikationen

Parts per reel		Reel dimensions (mm)					Tape dimensions (mm)					Orientation
7" (178 mm)	13" (330 mm)	A	B	C	D	E	W	P	Po	P1	T
2000	10000*	178/330	60/100	13	14,4	8,4	8	4	4	2	1,0

* Special order

Allgemeine Spezifikation

Kernmaterial:

Ferrite

Gewicht:

4.3 – 5.7 mg

Verpackung:

2000/7″reel; 10000/13″ reel Plastic tape: 8 mm wide, 1 mm thick, 4 mm pocket spacing

Löten/Reinigen

Feuchteempfindlichkeitsstufe (MSL):

1 (unlimited floor life at <30°C / 85% relative humidity)

Löttemperaturbeständigkeit:

Max three 40 second reflows at +260°C, parts cooled to room temperature between cycles

Vor dem Löten bitte den Beitrag Löten von Coilcraft-Bauelementen lesen.

Baugruppenreinigung:

Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.
