CJ5100

SMT Data Line EMI Filter

Low profile (<5.0 mm) compact surface mount package
Ideal for use to suppress up to 100 MHz common mode noise for differential signal line filtering
Provides up to 33 dB common mode noise attenuation
500 Vrms Isolation (hipot)
Refer to Designing Common Mode Filters for design guidance.
RoHS-compliant. 260°C compatible. Tin-silver-copper over tin over nickel over phos bronze terminations.

Jetzt kaufen:

Anzahl	Einzelpreis
1	$4,53
250	$2,77
500	$1,67
1000	$1,29

Für große Mengen oder nicht vorrätige Artikel bitte ein Angebot anfordern.

Termination

L = Tin-silver-copper over tin over nickel

Packaging

C = 7" machine-ready reel

. Auf Lager, noch heute versandbereit.

Muster anfordern:

Technische Daten

Electrical specifications at 25°C.

Teilenummer 1	Leitungen	Gleichtakt- spitzenimpedanz (kΩ)	Grenz- frequenz (MHz) 2	Induktivität min (mH) 3	Irms (A) 4	DCR max (Ω) 5	Isolations- spannung (Vrms) 6
Teilenummer 1	Leitungen	Gleichtakt- spitzenimpedanz (kΩ)	Grenz- frequenz (MHz) 2	Induktivität min (mH) 3	Irms (A) 4	DCR max (Ω) 5	Isolations- spannung (Vrms) 6
CJ5100-AL	2	4,49 @ 9,9 MHz	920	0,33	0,85	0,24	500

Hinweise

When ordering, please specify packaging code: e.g. CJ5100-ALC
Frequency at which the differential mode attenuation equals 3 dB
Inductance shown for each winding, measured at 100 kHz, 0.1 Vrms, 0 Adc on an Agilent/HP 4263B LCR meter or equivalent.
Irms: Current that causes a 40°C temperature rise from 25°C ambient. This information is for reference only and does not represent absolute maximum ratings.
DCR is specified per winding at 25°C. For other operating temperatures, use this DCR at Temperature calculator.
Isolation (hipot) measured with 3 mA applied for two seconds

Anschlüsse:

RoHS compliant tin-silver-copper over tin over nickel over phos bronze.

Verpackung:

C = 7″ machine-ready reel. EIA-481 embossed plastic tape (250 parts per full reel). Quantities less than full reel available: in tape (not machine ready) or with leader and trailer ($25 charge).
D = 13″ machine-ready reel. EIA-481 embossed plastic tape. Factory order only, not stocked (1000 parts per full reel).
B = Less than full reel. In an effort to simplify our part numbering system, Coilcraft is eliminating the need for multiple packaging codes. When ordering, simply change the last letter of your part number from B to C.

Umwelt/Umgebung

Umwelt/Umgebung:

RoHS-konform

Umgebungstemperaturbereich:

–40°C to +85°C with Irms current

Lagertemperaturbereich:

Component: –40°C to +125°C
Tape and reel packaging: –40°C to +80°C

Maximale Bauteiltemperatur:

+125°C (ambient + temp rise)

Ausfälle pro Zeiteinheit (FIT) / Mittlere Ausfallzeit (MTBF):

See FIT/MTBF Calculations

Kennlinien

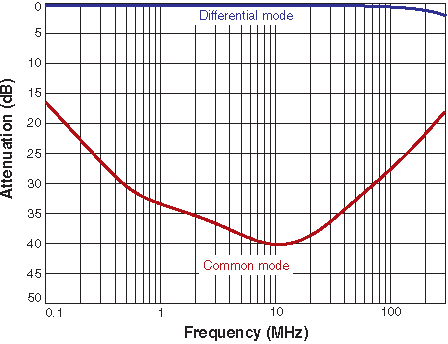

Attenuation (Ref: 50 Ohms)

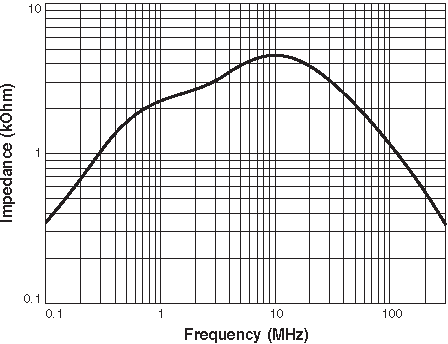

Impedance

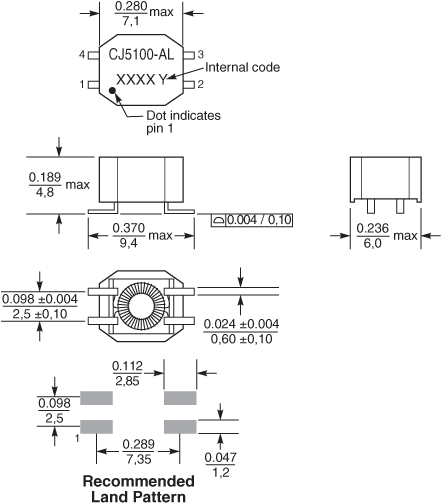

Pläne/Diagramme

Physikalische Eigenschaften

Gurt/Rolle-Spezifikationen

Parts per reel		Reel dimensions (mm)					Tape dimensions (mm)						Orientation
7" (178 mm)	13" (330 mm)	A	B	C	D	E	W	P	Po	P1	H	T
250	1000*	178/330	60/100	13	22,4	16,4	16	12	4	2	4,9	0,4

*Special order

Allgemeine Spezifikation

Kernmaterial:

Ferrite

Gewicht:

0.23 g

Verpackung:

250/7″ reel; 1000/13″ reel Plastic tape: 16 mm wide, 0.4 mm thick, 12 mm pocket spacing, 4.9 mm pocket depth

Löten/Reinigen

Feuchteempfindlichkeitsstufe (MSL):

1 (unlimited floor life at <30°C / 85% relative humidity)

Löttemperaturbeständigkeit:

Max three 40 second reflows at +260°C, parts cooled to room temperature between cycles

Vor dem Löten bitte den Beitrag Löten von Coilcraft-Bauelementen lesen.

Baugruppenreinigung:

Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info
